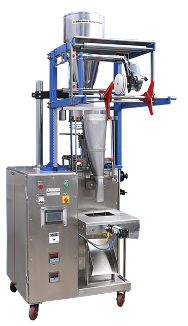

Automatic Single Pneumatic Pouch Paking Machine
Automatic Single Pneumatic Pouch Paking Machine
The Automatic Single Pneumatic Pouch Packing Machine is designed for efficient and precise filling and sealing of pouches for products like powders, granules, or spices. It operates using pneumatic mechanisms for consistent sealing and filling accuracy. Ideal for medium to high-volume packaging in food, chemical, and agricultural industries.
| Component | Description |
|---|---|
| Application | Detergent powder, tea, spices, granules etc. |
| Filling Range | 200 gms to 1 kgs. |
| Packing Speed | 20 to 35 shots / minutes (According with nature of Products & Filling Range) |
| Type of Sealing | Centre Sealing or 3 Sides |
| Pouch Dim | Length 60-300 mm / Film Width 50-400 mm |
| Pouch Film Material | All type of heat sealable laminates |
| Power Requirement | 230 V A.C. / Single Phase / 50 Hz. / 3 KV |
| Machine Weight | 350 kgs. (Approx.) |
| Filling Material Contact parts | Stainless steel aisi 304 grade |
| Dosing System | Can be compatible with volumetric cup type / Weighing type / auger system |
| Compressed Air | 6CFM@6Bar (3HP Compressor) |

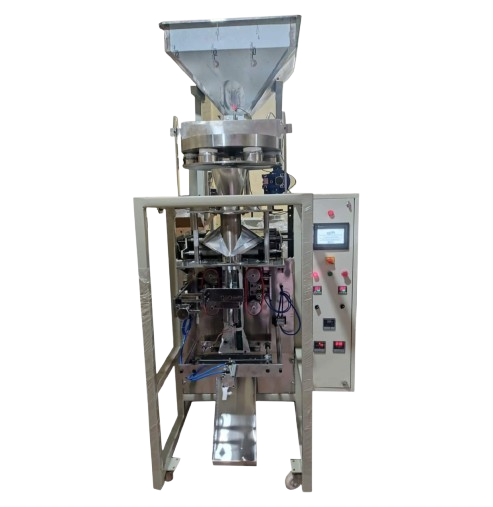

Detergent Powder Packing Machine
Detergent Powder Packing Machine
Applications
Detergent Powder
Tea
Spice
Granules
Other Products

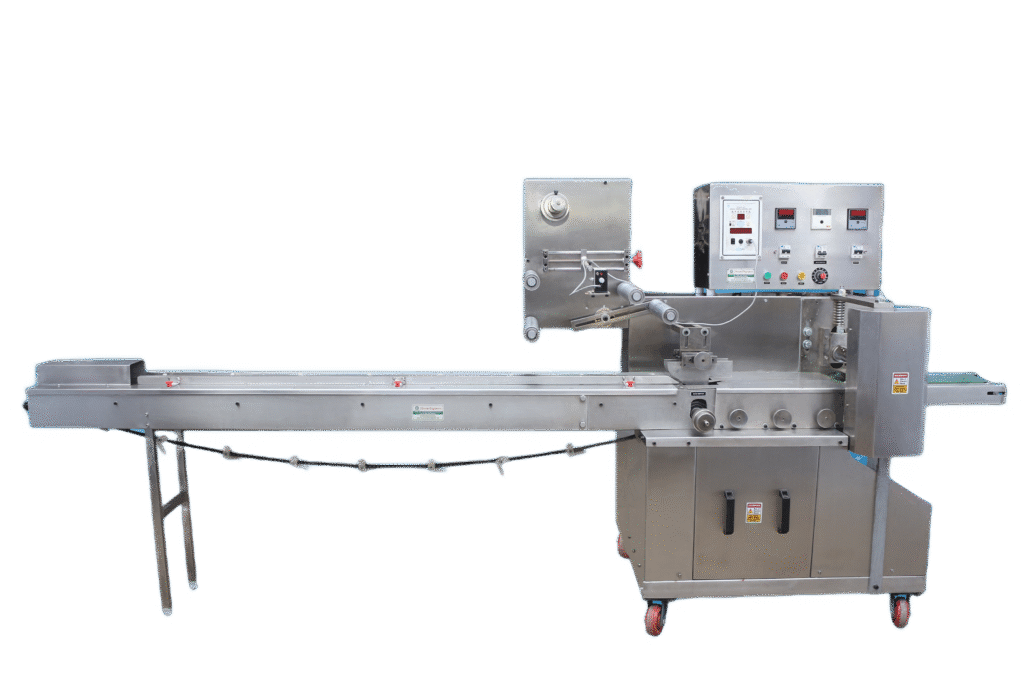

Horizontal Flow Wrapping Machine (Standard Model)
Pneumatic Collar Type Machine
Automatic Single Pneumatic Pouch Paking Machine

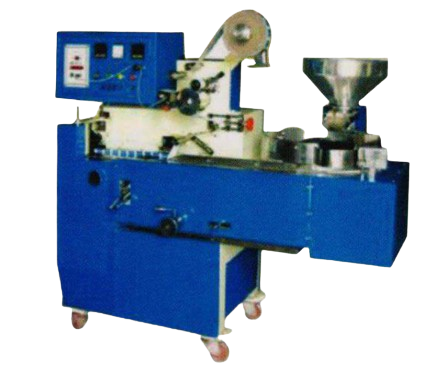

Candy Pillow Pack Machine

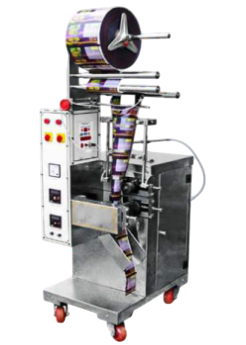

F.F.S. 4 Side Sealing Machine(Liquids Paste)
