Horizontal Down Paper Packing Machine (Single Servo Model)
Horizontal Down Paper Packing Machine (Single Servo Model)
The Automatic Flow Wrapping Machine is a high-performance packaging solution designed to wrap solid items like biscuits, chocolates, soaps, chikki, and ice candy with precision and efficiency. It is equipped with Delta A2 Series servo systems at the cutter sealer, die roller, machine conveyor, and feeding conveyor to ensure smooth operation, accurate positioning, and reduced backlash. The machine features a Panasonic I-Mark sensor for fast and reliable mark detection, a Delta PLC with digital inputs and outputs for seamless control, and a temperature control system for the die roller and sealer, adjustable directly via the HMI display. Designed for both manual and automatic modes, the machine offers operator-friendly controls and safety features such as alerts and alarms for any system errors.
| Component | Description |
|---|---|
| Application | To wrap any kind of solid commodities such as Biscuits, Soaps, Chocolates, Ice Candy, Chikki, Bearing, etc. |
| Brand | Shreem Engineers |
| Filling Range | Depends on Specific Products |
| Packing Speed | 70 to 130 Pouches/Minutes |
| Type of Sealing | Centre Sealing |
| Pouch Dim. | L: 40–300 mm, Film W: 20–125 mm, H: 5–56 mm |
| Pouch Film Material | All Types Of Heat Sealable Laminates |
| Power Req. | 2 H.P, 200–50V/50Hz Heater: 2 × 125 W + 4 × 125 W |
| Machine Weight | 450 kgs. (approx) |
| Filling Material Contact Parts | Stainless Steel AISI 304 Grade |
| Dosing System | Automatic & Manual Feeding |
| Automation Grade | Automatic |
| Voltage | 220 Single Phase (or) 440 Three Phase |
| Machine Size | 3920 × 670 × 1320 |
| Power Consumption | 2.4 kW |
| Frequency | 50–60 Hz |
| Product Height | Max. 50 mm |
Features
- Adopt PLC & HMI programming software, easy operating and setting self failure diagnosis, clear failure display
- High sensitivity photocell tracing, input cutting & sealing position digitally, extra accuracy
- PID control temperature independently which is more suitable for packing different materials
- Touch screen support for convenient operations
- Simple driving system, reliable working, convenient maintenance
- All control is realized through software, easy for function adjusting, technical upgrade
Applications

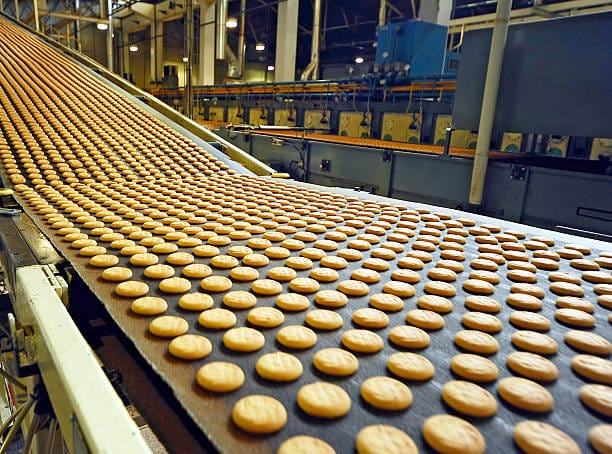

Biscuits
Soaps
Chocolates
Ice Candy
Chikki
Other Products
