A Horizontal Flow Wrapping Machine is something you’ll find in almost every packaging setup. Whether it’s food, daily-use products, or small medical items, this machine handles wrapping quickly and neatly.
Still, most people just operate it one without thinking much about what’s happening inside. The minute you learn about each piece, everything will become much clearer. You will be able to identify any issues quickly, and maybe even make improvements to the machinery.
Here is an overview of the different components and their functions.
What Is a Horizontal Flow Wrapping Machine?
A Horizontal Flow Wrapping Machine packs products by moving them forward on a conveyor while wrapping film around them.
The product goes in from one side, gets wrapped, sealed, and comes out ready from the other side. The whole process feels smooth when everything is set right.
You’ll mostly see a Horizontal Flow Wrapping Machine used for:
- Biscuits and bakery items
- Chocolates
- Soap bars
- Small retail products
It works best when you need speed along with clean packaging.
Why Knowing the Components Helps
When you know how each part of a Horizontal Flow Wrapping Machine works, things become easier on the shop floor.
You can:
- Understand where the problem is coming from
- Reduce unnecessary stops
- Adjust the settings better
Even a small amount of knowledge can save time during production.

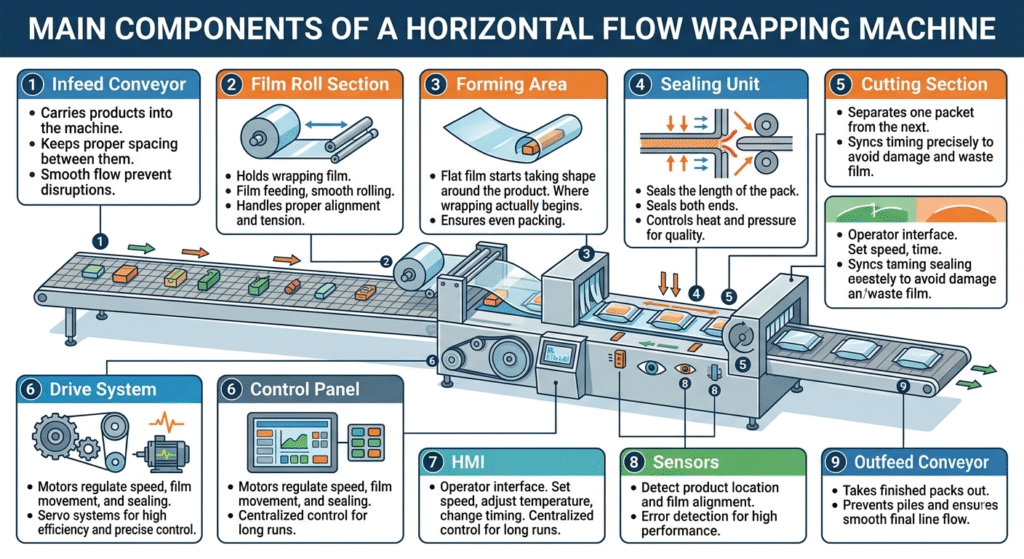

Main Components of a Horizontal Flow Wrapping Machine
Let’s go through the important parts one by one.
Infeed Conveyor
This is where everything starts.
The infeed conveyor in a Horizontal Flow Wrapping Machine carries products into the machine. It also keeps proper spacing between them.
If products are too close or uneven, the whole flow can get disturbed. So this part quietly does a very important job.
Film Roll Section
This section holds the wrapping film.
In a Horizontal Flow Wrapping Machine, the film needs to move smoothly without jerks. If the tension is off, wrapping won’t look right.
This part handles:
- Film feeding
- Smooth rolling
- Proper alignment
It may look simple, but poor film handling can create a lot of issues.
Forming Area
Once the film moves forward, it passes through the forming area.
Here, the flat film starts taking shape around the product. In a Horizontal Flow Wrapping Machine, this is where wrapping actually begins.
If this part is not set properly, the pack may look loose or uneven.
Sealing Unit
This is where things get locked in.
The sealing unit in a Horizontal Flow Wrapping Machine does two things:
- Seals the length of the pack
- Seals both ends
Heat and pressure work together here. If the temperature is too low or too high, sealing quality drops.
Good sealing means the product stays protected and the pack looks clean.
Cutting Section
Right after sealing, the cutting happens.
The cutting unit in a Horizontal Flow Wrapping Machine separates one packet from the next.
Timing is very important here. If cutting is not synced properly, it can damage the packaging or waste film.
Drive System
The drive system is what keeps everything moving.
Motors regulate the following in a Horizontal Flow Wrapping Machine:
- Speed of conveyor
- Movement of the film
- Time for sealing
Today’s machines incorporate servo systems, allowing for more efficient performance.
Control Panel
This is where the operator interacts with the machine.
Through the control panel, you can:
- Set speed
- Adjust temperature
- Change timing
A well-handled control panel can make a big difference in how a Horizontal Flow Wrapping Machine performs during long runs.
Sensors
Sensors are small but very useful.
They are used in a Horizontal Flow Wrapping Machine for the following purposes:
- Product location sensing
- Alignment of the film
- Error detection
The absence of sensors would affect machine performance.
Outfeed Conveyor
This is the final stage.
The outfeed conveyor in a Horizontal Flow Wrapping Machine takes the finished packs out.
It keeps the flow smooth and prevents products from piling up. If this part slows down, it can affect the entire line.
How Everything Connects
A Horizontal Flow Wrapping Machine works like a chain. Each part depends on the next.
The flow usually goes like this:
- Product enters
- Film wraps around it
- Sealing closes the pack
- Cutting separates it
- Finished pack moves out
If one part is slightly off, the whole process can feel it.
Common Problems When Parts Are Not Set Right
When a Horizontal Flow Wrapping Machine is not properly adjusted, you may notice:
- Loose or wrinkled packs
- Improper sealing
- Uneven cutting
- Film wastage
Most of the time, these issues come from small misalignments, not big faults.
Final Thoughts
A Horizontal Flow Wrapping Machine may look straightforward from the outside, but inside, many parts are working together at the same time.
Each component has a clear role. When everything is set properly, the machine runs smoothly and gives consistent output.
Understanding these basics makes handling a Horizontal Flow Wrapping Machine much easier and more practical in daily work.
FAQs
1. What does a Horizontal Flow Wrapping Machine do?
It wraps products in film and seals them into ready-to-use packs.
2. Which part handles sealing in a Horizontal Flow Wrapping Machine?
The sealing unit is responsible for closing and securing the package.
3. Why is film alignment important?
Proper alignment ensures clean and even packaging without wrinkles.
4. What controls the speed of the machine?
The drive system and control panel manage speed and movement.
5. Can one machine handle different products?
Yes, with proper settings, a Horizontal Flow Wrapping Machine can pack different items.
